Scoping document

Tenant-customizable email templates and branding

Multi-tenant LMS. Backend FastAPI, frontend React, platform-admin Next.js.

Status as of 17 Sep 2026: Merged to main, deploying to beta. Not released to production yet. Parent SP-721. Phase A SP-730 = PR #453 (merged 17 Sep 2026, 650e755f). Phase B SP-731 = PR #454 (merged 17 Sep 2026, 5ad49b6e).
Latest production tag v0.0.48 does not include this work. Migration 516241d5e328 adds tenants.email_branding; the email.branding.enabled flag is off by default for every tenant. Gmail and other-client manual check still pending on beta.

On one page: The per-tenant email sender identity and brand object already exist. The gap is that email colors are still hardcoded and there is no tenant editor. We recommend shipping an auto-themed layout first (low risk), then adding safe tenant content blocks with the existing rich-text editor.

Current state and gaps
Goals and non-goals
Design options
Logo and images
Variables and sanitization
Data, API, rendering
Frontend and rollout
Open decisions
Ticket breakdown
As built

1. Current state and gaps

Already works good

Per-tenant sender identity: from-name, reply-to, optional tenant SMTP.
A brand object with name, logo, address, contact, phone, site URL.
Logo already limited to png/jpg/gif (no svg/webp in email).
Tenant context reaches async sends through post-commit hooks.
Tenant colors exist as branding.colors (primary, secondary, footer).

Gaps fix

Email colors are hardcoded. CTA is always blue #2563eb.
Tenant colors never reach email; the color math is frontend-only.
No tenant-facing email editor.
No backend HTML sanitizer and no CSS inliner installed.
Templates are hardcoded Vietnamese; weak plain-text fallback.
brand.site_url and brand.phone resolved but unused.

Email types today

All go through one send_custom_email path and one of three templates. No password-reset email (Firebase owns auth). No customer invoice email yet.

Type	Template	Trigger
Student added	simple.html	admin adds student
Tenant invitation	simple.html	invite created
Test email	simple.html	admin clicks test
Enrollment welcome	simple.html	enrollment completes
Admin enrollment / payment notice	simple.html	paid enrollment
Assessment deadline reminder	assessment_deadline_reminder.html	cron
Live class reminder	live_class_reminder.html	cron

2. Goals and non-goals

Goals

Emails match tenant logo, colors, name, footer, and links.
Tenant R2 images allowed inside emails.
Tenant admins adjust safe content without a developer.
Graceful fallback to today's look when nothing is set.
Keep the working sender identity untouched.

Non-goals (first release)

No full raw-HTML template override per email type.
No per-tenant verified domain or DKIM.
No new email types.
No drag-and-drop builder.
No multi-locale content editing UI yet.

3. Design options

All options keep a locked, table-based layout shell for email client safety.

Option	What tenant controls	Editor	Effort	Risk	Verdict
A. Branded layout only	Colors, logo, name, footer from existing branding	None (uses Branding page)	S	very low	Ship first
B. A + content blocks	A, plus header tagline, footer signature, intro/outro text	Reduced Quill editor	M	medium	Ship second
C. Full raw template per type	Whole HTML body per email type	Full HTML editor	L	high	Skip
D. Markdown into shell	Markdown body per type	Markdown editor	M	medium	Later, if asked

Recommendation: A now, B as a fast follow

A closes the main complaint (emails look off-brand) with almost no risk and reuses colors that already exist. B then adds real voice control by reusing the Quill editor with a reduced toolbar and a backend sanitizer, storing only small content blocks, never a full body. Skip C. Revisit D only on demand.

Reuse the existing react-quill-new editor for B. It already uploads images to R2. What it lacks for email: table layout (kept in the locked shell), an email-client preview and width guard (we add an iframe and fixed 600px width), email-safe output (we strip classes and keep an inline-style allowlist on save), and dark-mode handling (done in the shell, not tenant HTML).

4. Logo placement and external images

Logo

Default header, centered; offer left or centered only.
Cap height 40px; set explicit height/width for Outlook.
Upload at 2x, render at 1x; no srcset (email ignores it).
No email-safe logo means the tenant name shows as text.
Served from R2 public URL; long cache lifetime.

External images

Tenant R2 uploads only. No arbitrary https URLs (tracking, privacy).
Reuse presigned PUT; keys under the tenant email prefix.
png/jpg/gif only; about 1MB cap; 600px max width.
On save, every image must point at this tenant's prefix.
Deleted image shows broken; warn on delete or clean up later.

5. Variables and sanitization

Variables (Option B)

Expose a small fixed set: user first name and email, tenant name, contact, site URL, course title and URL, plus action_url.

Sandbox: use simple named placeholder substitution, not a full Jinja2 environment. Replace known tokens from a fixed dict, escape every value, and leave unknown tokens blank. Keep full Jinja2 only for the shell we control.

Sanitization and security

Add backend sanitizer nh3 (fast, maintained). Run on save and render.
Allowlist tags and a narrow inline-style set; no class, no id.
Block script, style, iframe, handlers, javascript: and data:.
Links: only http, https, mailto; force rel=noopener.
Enforce tenant image prefix so tenants cannot cross-reference assets.
Size caps per block and per tenant.
Preview in a sandboxed iframe with srcdoc, scripts off.

6. Data model, API, and rendering

Data

Phase A: no new table. Reuse branding.colors and logo; add an optional email_layout sub-object.
Phase B: JSONB tenants.email_branding for header tagline, footer signature, intro/outro, alignment, enabled, updated_by.
Only add a tenant_email_templates table if per-type templates ever land. Defer.
Migrations generated with Alembic; additive and backward compatible.

API

GET/PUT /admin/tenant-settings/email-branding; sanitize on write.
POST .../email-branding/preview returns safe HTML, no send.
Reuse existing test-send and asset-upload endpoints; add an email asset kind.
Platform-admin read and reset mirror.
Return raw plus effective_* values, like the current email settings contract.

Rendering pipeline

Extend EmailBrand with resolved email colors (primary, CTA, footer, foregrounds).
Port a small sRGB darken plus luminance foreground pick to the backend; no full OKLCH needed.
Templates read brand colors instead of hardcoded hex.
Styles stay inline; add css_inline only if we move to a shared style block.
Build a real plain-text fallback from the content.
Optionally cache the resolved color set per tenant briefly.

Sender identity

From-name is the tenant name; reply-to is the tenant contact. Already done.
From-address stays on the platform relay unless custom SMTP is set.
Verified domain and DKIM are a follow-up, out of scope here.

7. Frontend and rollout

Frontend

Phase A: add an email preview panel to the existing Branding page.
Phase B: an Emails section with a reduced Quill editor and image upload.
Live preview via sandboxed iframe fed by the server preview endpoint.
Works at 360px; preview scrolls in its own container; strings via i18n.

Rollout and fallback

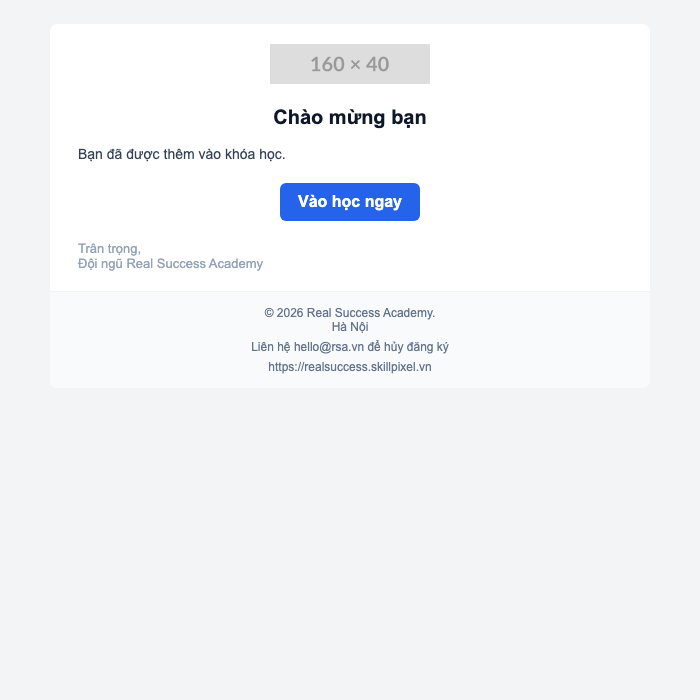

Default is today's look; a tenant that sets nothing is unchanged.
Gate the Phase B editor behind email.branding.enabled.
Phase A auto-theme needs no flag; safe for everyone.
The default (platform) tenant must not change.

8. Open decisions for Khang

All six are now decided. Each followed the recommendation.

#	Decision	Recommendation	Outcome
1	Ship A first, then B?	Yes. A is low risk, fixes the main complaint.	Decided Phased: A then B.
2	CTA color: derive from primary or explicit field?	Derive from primary; allow override later.	Decided CTA derived from branding primary.
3	Phase B editor: Quill or Markdown?	Quill; tenants know it and it uploads to R2.	Decided Reduced Quill editor.
4	Backend sanitizer: nh3 or bleach?	nh3; fast and maintained.	Decided nh3.
5	External images: R2 only or any https?	R2 uploads only.	Decided R2 uploads only.
6	Email language: add English now?	Keep Vietnamese; multi-locale is a later ticket.	Decided Vietnamese only.

9. Ticket breakdown

Ticket	Scope	Size	Depends on	PR
SP-721 (parent)	Tenant-branded transactional emails	-	-	-
SP-730	Phase A: tenant-branded email shell and preview. Backend color helper, themed templates with logo alignment, real plain-text fallback, preview endpoint, preview panel on the Branding page.	M	none	#453 merged 17 Sep 2026
SP-731	Phase B: tenant-editable email content blocks. nh3 sanitizer, placeholder substitution, email_branding JSONB + API, email asset uploads, entitlement, platform-admin view, Emails UI with reduced Quill and live preview.	L	SP-730	#454 merged 17 Sep 2026

Each phase ships as one PR titled with its key. The detailed checklist for each phase lives in the ticket description.

10. As built

This section records what actually shipped, where it differs from the plan, and what we found while verifying.

a) Phase A (SP-730)

Backend color helper: sRGB darken plus WCAG luminance to pick a readable foreground. Falls back to the old hardcoded hex palette when a tenant has no colors.
EmailBrand extended with resolved colors and logo alignment. Logo alignment is stored in tenants.branding.email_logo_alignment, so no migration was needed.

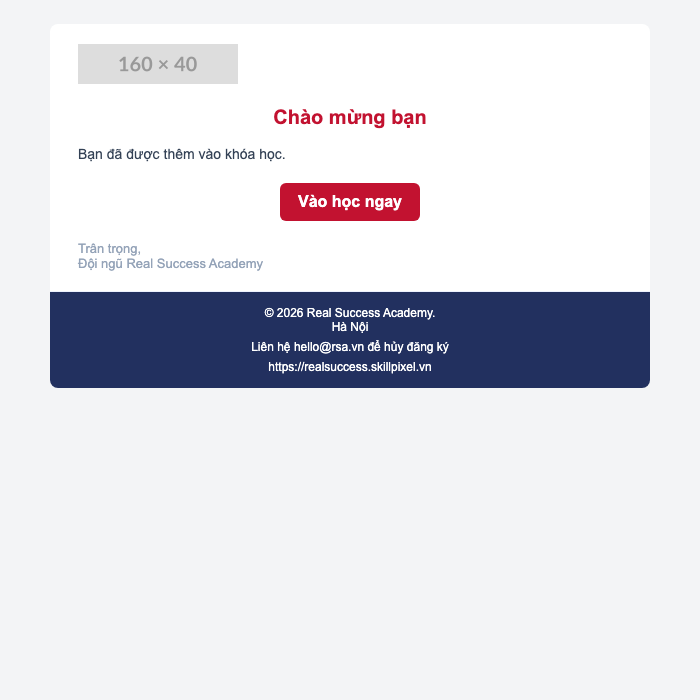

Three templates themed with inline styles that read the brand colors.
Plain-text part derived from the rendered HTML.
Preview endpoint POST /admin/tenant-settings/email-branding/preview.
Preview card in the UI (later moved to the Emails page in Phase B).

b) Phase B (SP-731)

nh3 sanitizer. Allowlist: p, br, strong, em, u, a, ul, ol, li, span, img. Links only http, https, mailto with a forced rel. Inline style limited to color, font-weight, text-decoration. Images only under tenants/{id}/email/ on R2. data: URLs, other hosts, and blocks over 10 KB are rejected. Runs on save and on render.
Placeholder substitution of a fixed token set, with escaping.
tenants.email_branding JSONB. Migration 516241d5e328, additive, default {}.
Entitlement email.branding.enabled, off by default. PUT is refused when off; GET is allowed.
GET/PUT /admin/tenant-settings/email-branding.
Email image presign and complete endpoints. png/jpg/gif, 1 MB cap.

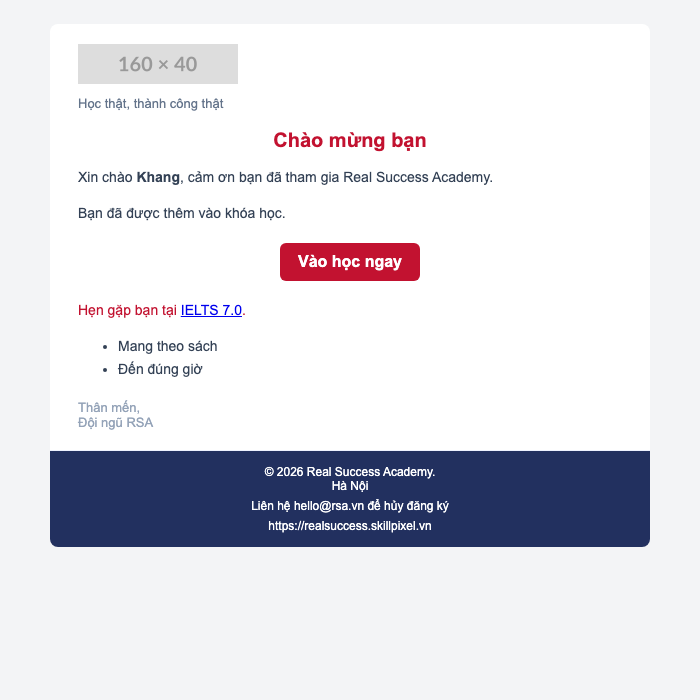

Render slots: tagline under the logo, intro above the body, outro after the CTA, signature replaces the default sign-off.
Platform endpoints GET /platform/tenants/{id}/email-branding and POST .../reset.

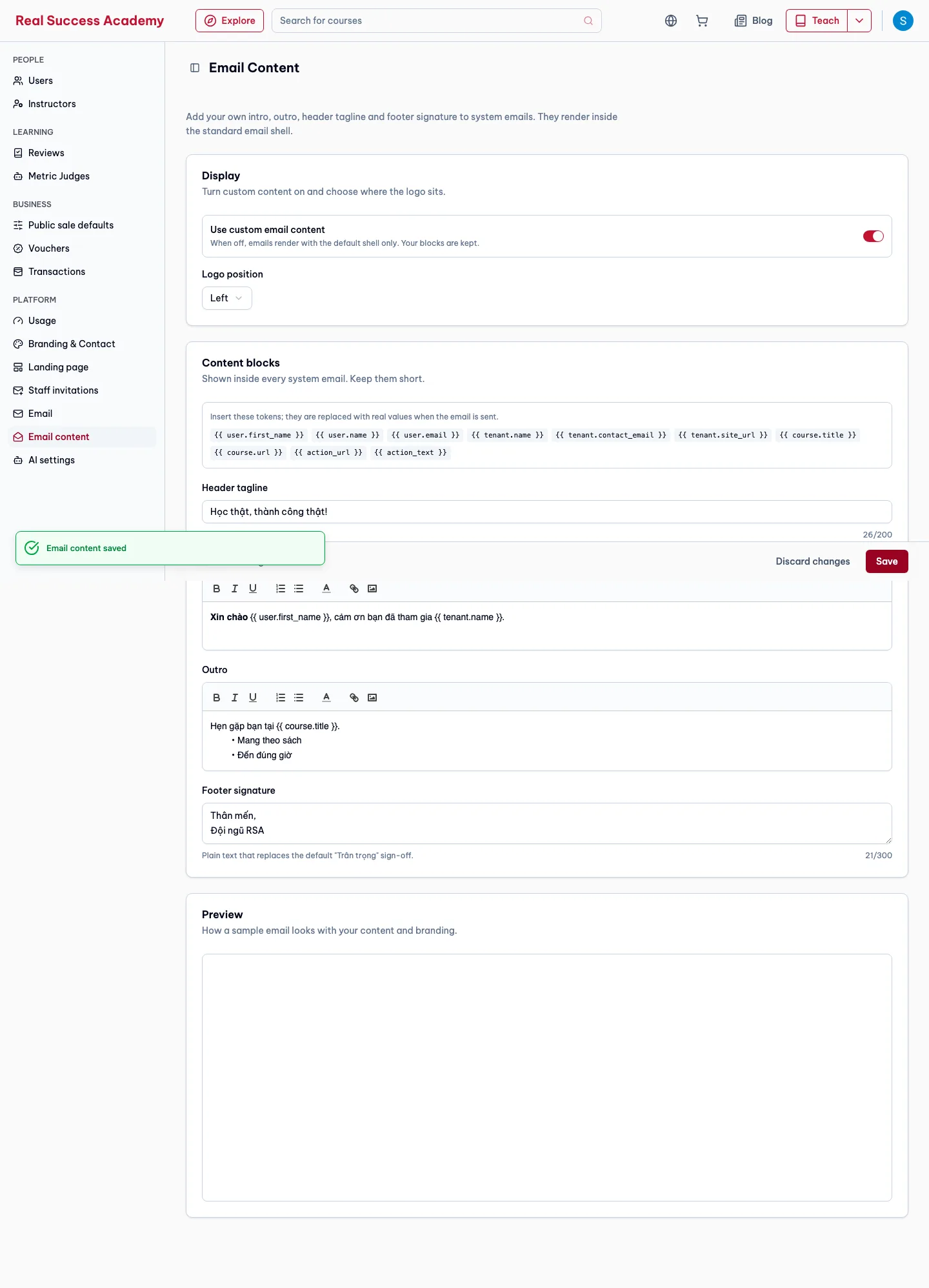

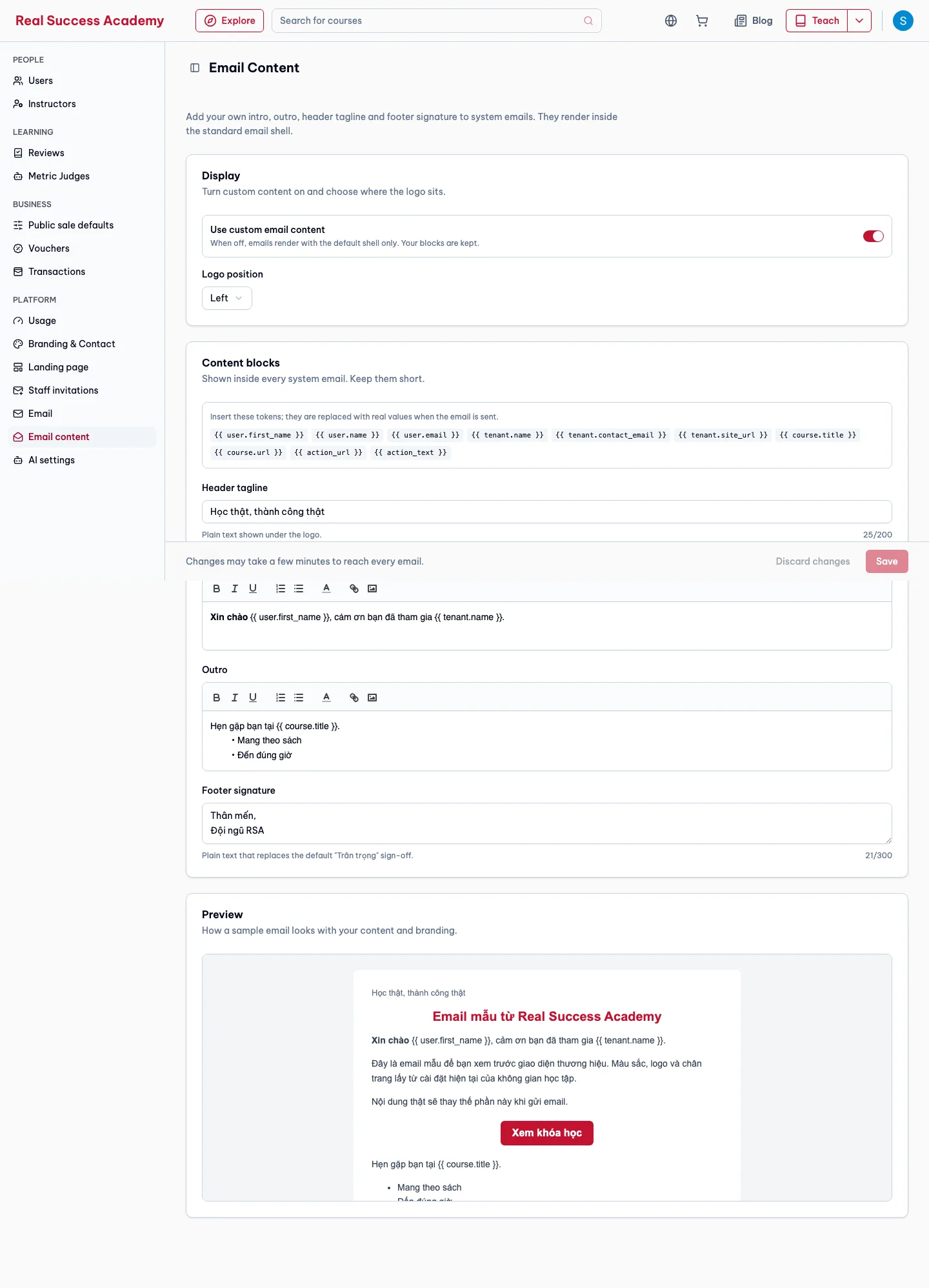

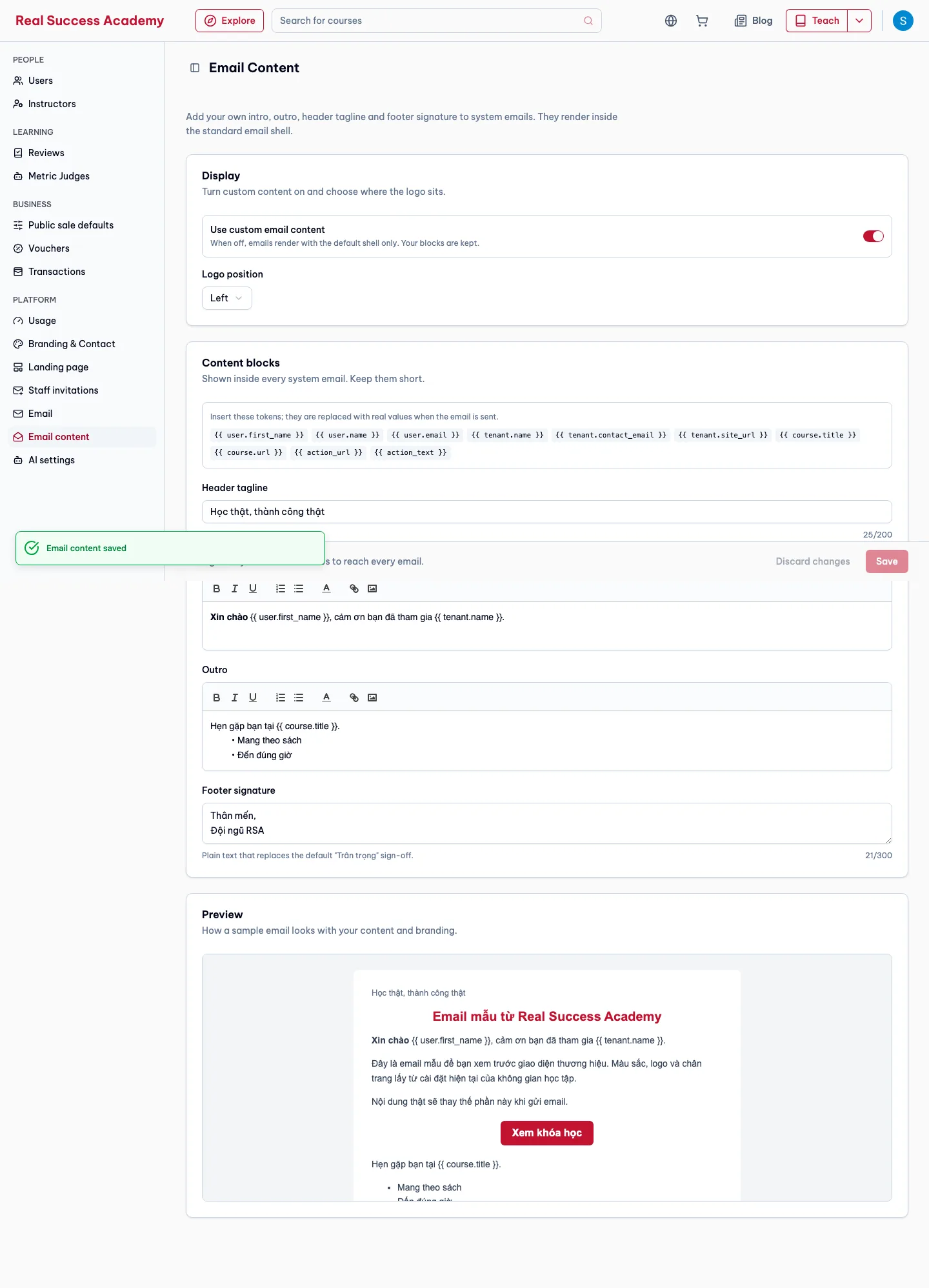

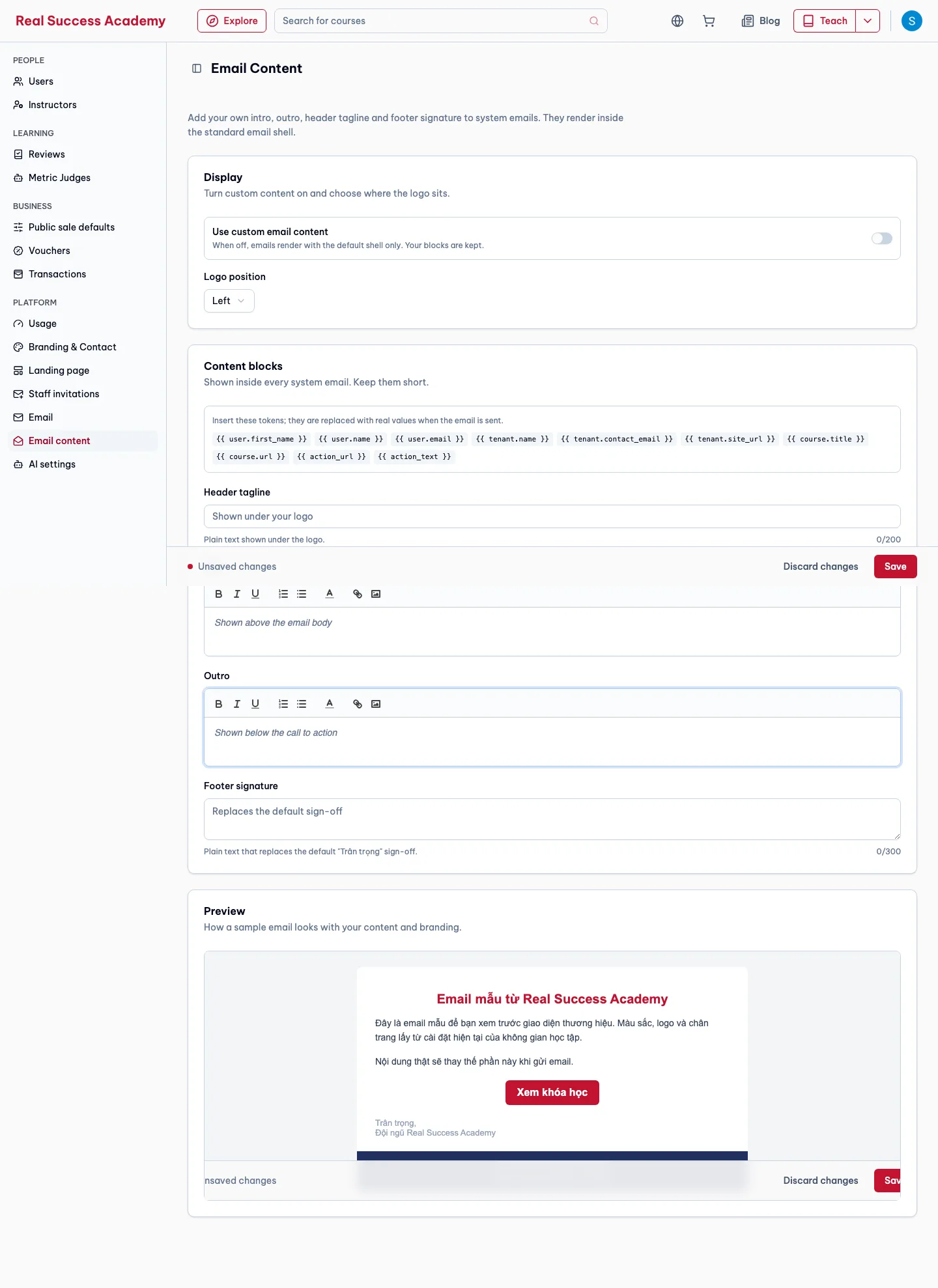

New tenant admin page /admin/email-content (hidden when the flag is off): enabled switch, logo position, tagline and signature with counters, intro and outro in a reduced Quill toolbar (bold, italic, underline, lists, link, text color, image), placeholder helper, debounced sandboxed live preview, dirty state, and inline field errors.

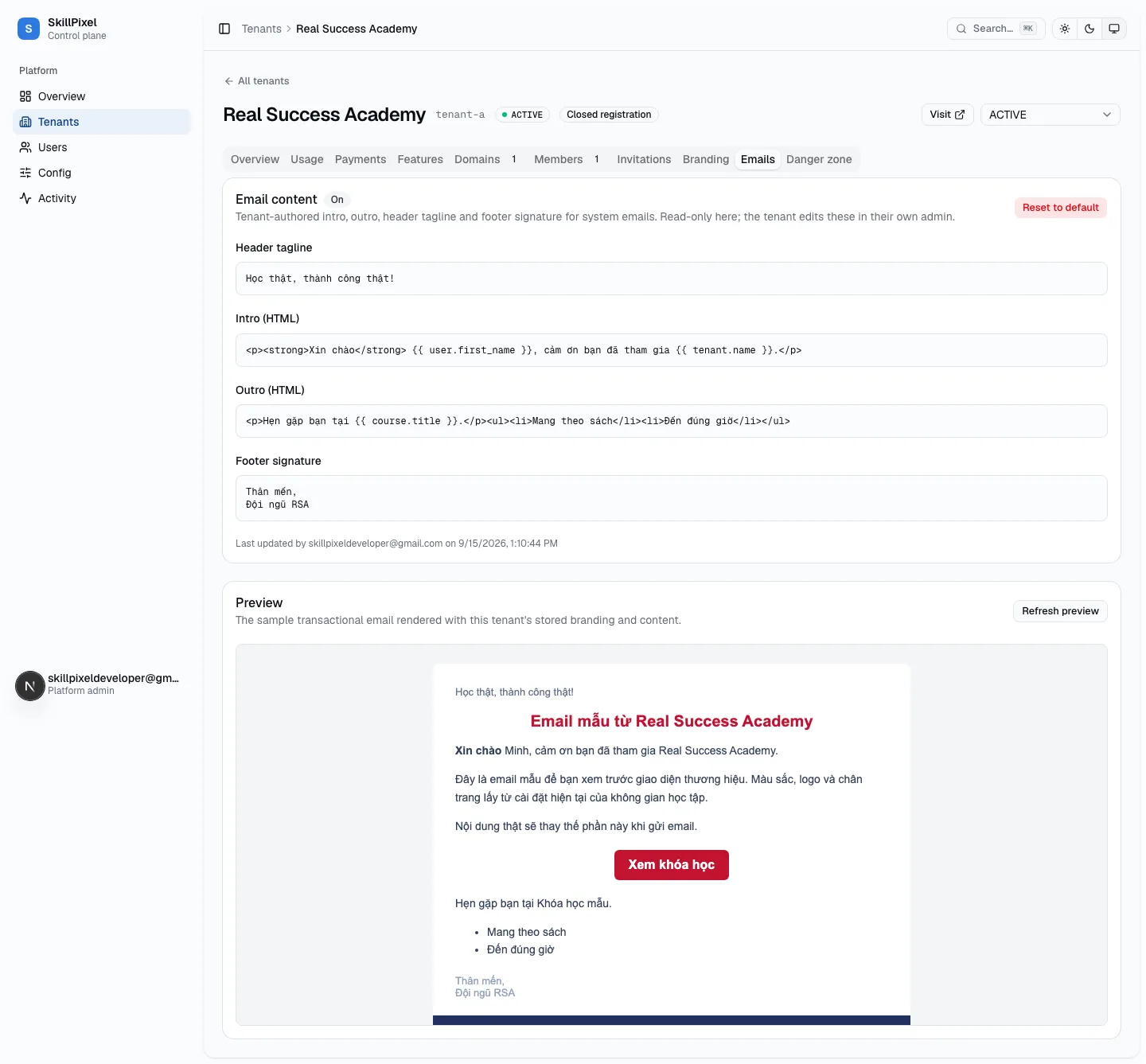

Platform-admin read-only Emails tab with reset and a rendered sample-email preview (its own platform preview endpoint, same render path).

c) Differences from the plan

Logo alignment lives in the branding JSONB, not in email_branding.

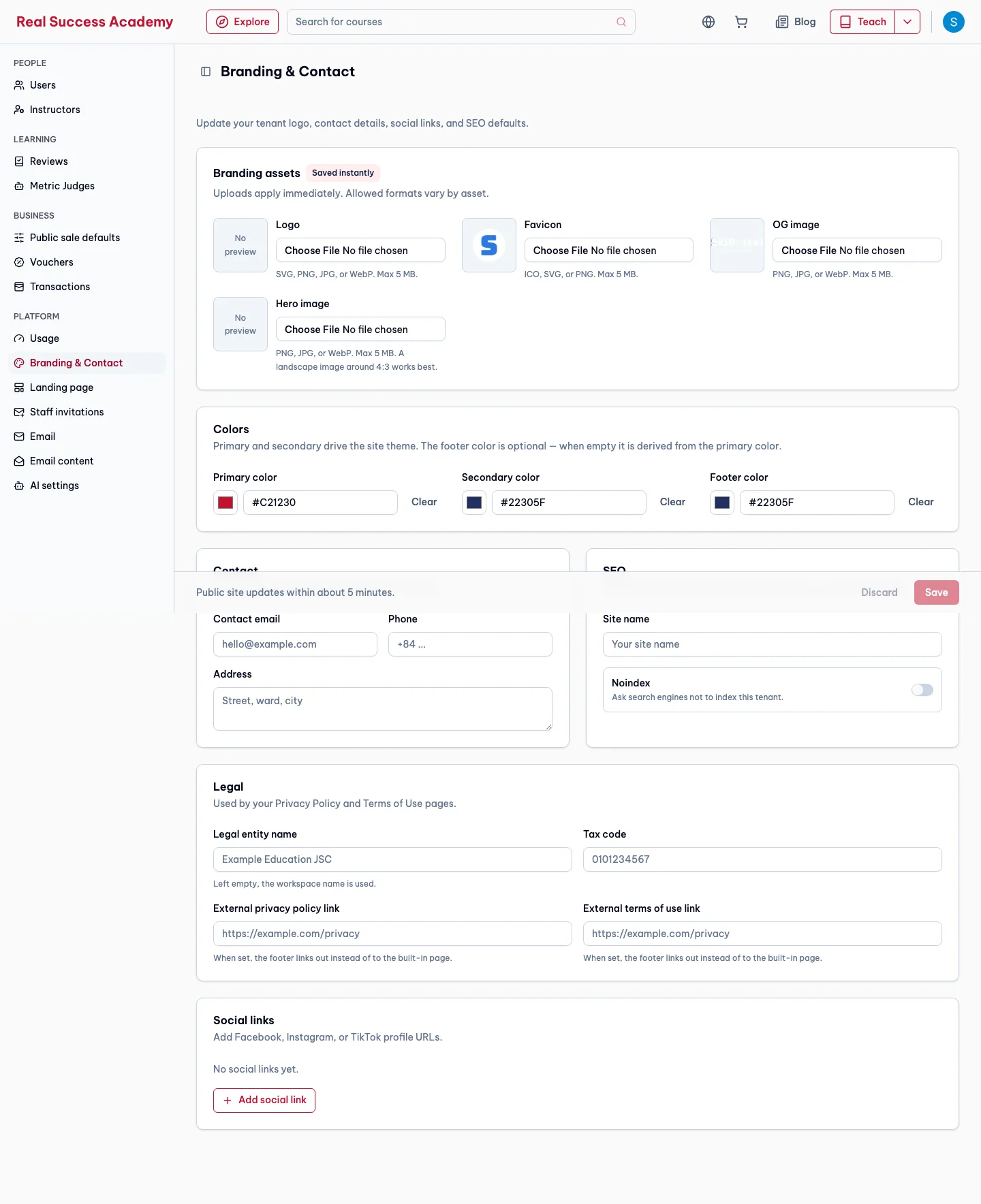

The Phase A preview card moved from the Branding page to the new Emails page.
There is no separate email_layout object.

d) Issues found during verification, and known limits

Found and fixed fixed

The header tagline used the footer text color and was invisible on the white header. Fixed to a neutral grey.

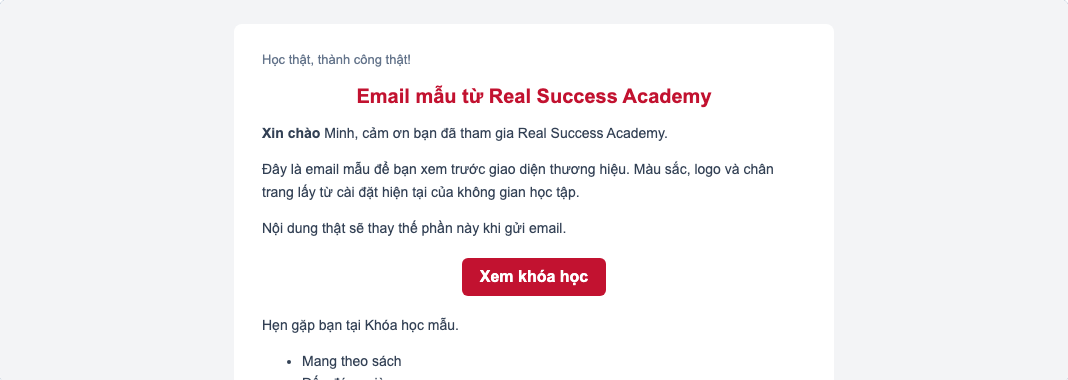

Quill stores spaces as non-breaking spaces, and nh3 writes them back as  , so {{ token }} placeholders never matched. Fixed by normalising nbsp on save and making the matcher tolerant (commit 8f7e1d02).

Known limits watch

The email table is a fixed 600px wide (pre-existing). Narrow clients that do not scale will clip it.
Local image upload from the editor failed only because the R2 bucket CORS does not include the local .test origin. Needs a beta check.
Two pre-existing test dictionaries were updated for the new branding key.
